- Name:工業(yè)高壓清洗機(jī)
- Category:Ship marketing
- ModelEP3020 Ship Marketing
- Brand:JINY
- Drive Mode:Motor drive
- Install Mode:moving
- Order Number:923020
-
Working Pressure:300bar
Working Flow：20lpm -
Power:10.5kw
Weight:90kg - Packing Size:80*60*60 cm
|
?MODEL |
EP3020 |
|
?MAX. PRESSURE?bar |
310 |
|
?OPERATING PRESSURE?bar |
300 |
|
?FLOW??L/min |
20 |
|
?NOZZLE TYPE |
045 |
|
?MOTOR POWER?kw |
10.5 |
|
?POWER SUPPLY |
220V/60HZ/3P Or 440V/60HZ/3P |
|
?INLET TEMPERATURE?℃ |
0-~50 |
|
?INLET PRESSURE?bar |
0.2~3 |
|
?FILTER PRECISION?um |
50~150 |
|
?INLET |
3/4” |
|
?OUTLET |
M22×1.5 |
|
?WEIGHT?kg |
90 |
|
?PACKING DIMENSION?cm |
86*65*65 |
|
?CODE |
923020 |
?
——Application：
· Tank cleaning
·?Ship hull cleaning
·?Marine surface prep·?Paint removal from ships.
·?Clear oyster·?Descaling
·?Heat exchanger tube cleaning & pipe cleaning
·?Deck cleaning
·?Vessel cleaning
——General Features：
·?Triplex pump with 3 ceramic plungers
·?Unloader valve, with by-pass system, infinitely variable volume and pressure
·?Stainless steel liquid filled pressure gauge
·?Micro Water Filter
·?Temperature protection
·?Motor with thermal protection
·?Industrial motor, S1, IP55, F, with 100% running time（24h running）
·?Pump and motor separated by flexible clutch
· Wheel heavy trolley mounted unit, epoxy painting
——Standard equipment：
·?1pcs? High pressure hose, 10m·?1pcs? Spray gun·?1pcs? Stainless steel lance, 900mm.?·?1pcs? Flat spray nozzle, ceramic nozzle, 15°·?1pcs? Straight jet nozzle, ceramic nozzle

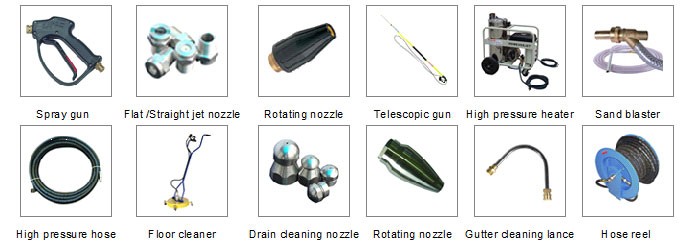

—— Available options：
| ? |
? Product |
? Model |
? Description |
|
1 |
??Spray gun |
? G310 |
? 390bar，Inlet:G1/2F， Outlet:G1/2F |
|
2 |
? Stainless steel lance |
? 1/4MZL900(600bar) |
? 600bar，ZG1/4F，900mm |
|
3 |
? Flat spray nozzle |
? 1/8MVNP15 |
? 500bar，ZG1/8M，15° |
|
4 |
? Straight jet nozzle |
? 1/8MCP |
? 500bar，ZG1/8M，0° |
|
5 |
? Rotating nozzle |
? R31 |
? 400bar，Inlet:G1/4F |
|
6 |
? Drain cleaning nozzle |
??1/8FH35 |
? 350bar，Inlet:G1/8F |
|
7 |
? Sand blaster |
??SN50 |
? 500bar |
|
8 |
? High pressure hose |
??HP10/40-10 |
? DN10，400bar，10m，ZG3/8M-M22×1.5 |
|
9 |
? High pressure hose |
??HP10/40-20 |
?? DN10，500bar，20m，ZG3/8M-M22×1.5 |
|
10 |
? High pressure hose |
??HP10/40-30 |
?? DN10，500bar，30m，ZG3/8M-M22×1.5 |
|
11 |
? High pressure hose |
? HP10/40-50 |
?? DN10，500bar，50m，ZG3/8M-M22×1.5 |
|
12 |
? Drain cleaning hose |
??HP06/50-10 |
? DN10，500bar，φ17mm，10m，ZG1/8M |
|
13 |
? Floor cleaner - rotating nozzlesr |
??FC18 |
? DN10，280bar，Inlet: M22×1.5 |
|
14 |
? Telescopic gun |
??GI28/700 |
? DN10，280bar，2.5~6m，Inlet:G3/8F |
|
15 |
? Hose reel |
??CB15-8 |
? DN10， 200bar，Inlet:G3/8F |
?
?
——General Features：
·?Triplex pump with 3 ceramic plungers
·?Unloader valve, with by-pass system, infinitely variable volume and pressure
·?Stainless steel liquid filled pressure gauge
·?Micro Water Filter
·?Temperature protection
·?Motor with thermal protection
·?Industrial motor, S1, IP55, F, with 100% running time（24h running）
·?Pump and motor separated by flexible clutch
· Wheel heavy trolley mounted unit, epoxy painting
—Application：
· Tank cleaning·?Ship hull cleaning·?Marine surface prep·?Paint removal from ships.·?Clear oyster·?Descaling·?Heat exchanger tube cleaning & pipe cleaning·?Deck cleaning·?Vessel cleaning
